Corrugated cardboard is also called special-shaped board. It uses color-coated steel sheets, galvanized sheets and other metal sheets to be rolled and cold-formed into various wave-shaped profiled sheets.
Used in industrial and civil buildings, warehouses, special buildings, large spans, etc. Roof, wall and interior and exterior wall decoration of steel structure houses.
| product name | Color Coated Roof Sheets |
| Material | ASTM/AISI/SGCC/CGCC/TDC51DZM/TDC52DTS350GD/TS550GD/DX51D+ZQ195-q345SGCH/DX51D+Z,DX52D+Z,DX53D+Z,DX54D+Z,S220GD+Z/A653 |
| standard | AISI,ASTM,BS,DIN,GB,JIS |
| grade | SGCC/CGCC/TDC51DZM/TDC52DTS350GD/TS550GD/DX51D+ZEN 10142, EN10147, EN 10292, JIS G3302, ASTM A653/A653M, BQB 420 |
| thickness | 0.18mm - 4.0mm or customer's request |
| width | 500-1500mm or customer's request |
| color | All RAL/TN colors |
| Dimensional tolerance | ± 1% |
| Galvanized layer (g/m2) | 30-275 g/m² |
| certified | ISO , SGS , BV |
| technology | Cold Rolled/Hot Rolled |
| MOQ | 5 tons |
| quality | Factory test certificate is provided with the goods, third party inspection is acceptable |

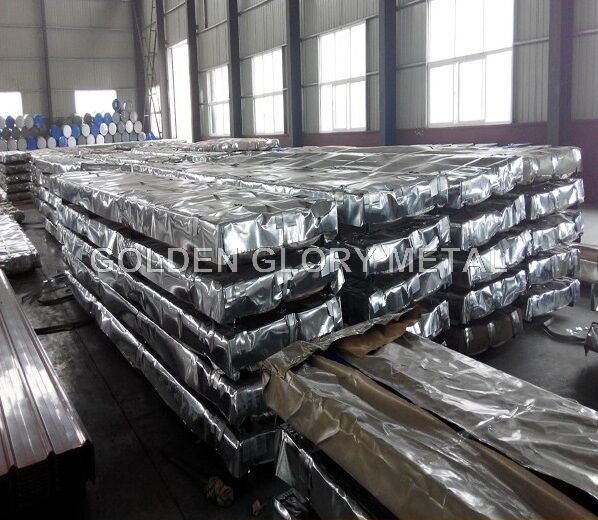

| pack | Standard shipping package: anti-rust paper, plastic. Outside: Steel inner and outer guards, round iron guards on both sides, outer iron guards, 3 radial bindings and 3 weft bindings. We can also pack according to your requirements. |
| delivery time | 3~15 days, according to the order quantity |
| expiration of pay | T/T, L/C 30%T/T advance payment + 70% balance |
| type | Effective width(mm) | Feeding width(mm) | Thickness (mm) |
| YX25-210-840 | 840 | 1000 | 0.1-0.8 |
| YX15-225-900 | 900 | 1000 | 0.1-0.8 |
| YX14-63.5-850 | 850 | 1000 | 0.1-0.8 |
| YX23-210-1050 | 1050 | 1200 | 0.1-0.8 |
| YX35-248-1000 | 1000 | 1200 | 0.1-0.8 |
| YX10-130-910 | 910 | 1000 | 0.1-0.8 |
| YX31.5-130-780 | 780 | 1000 | 0.1-0.8 |
